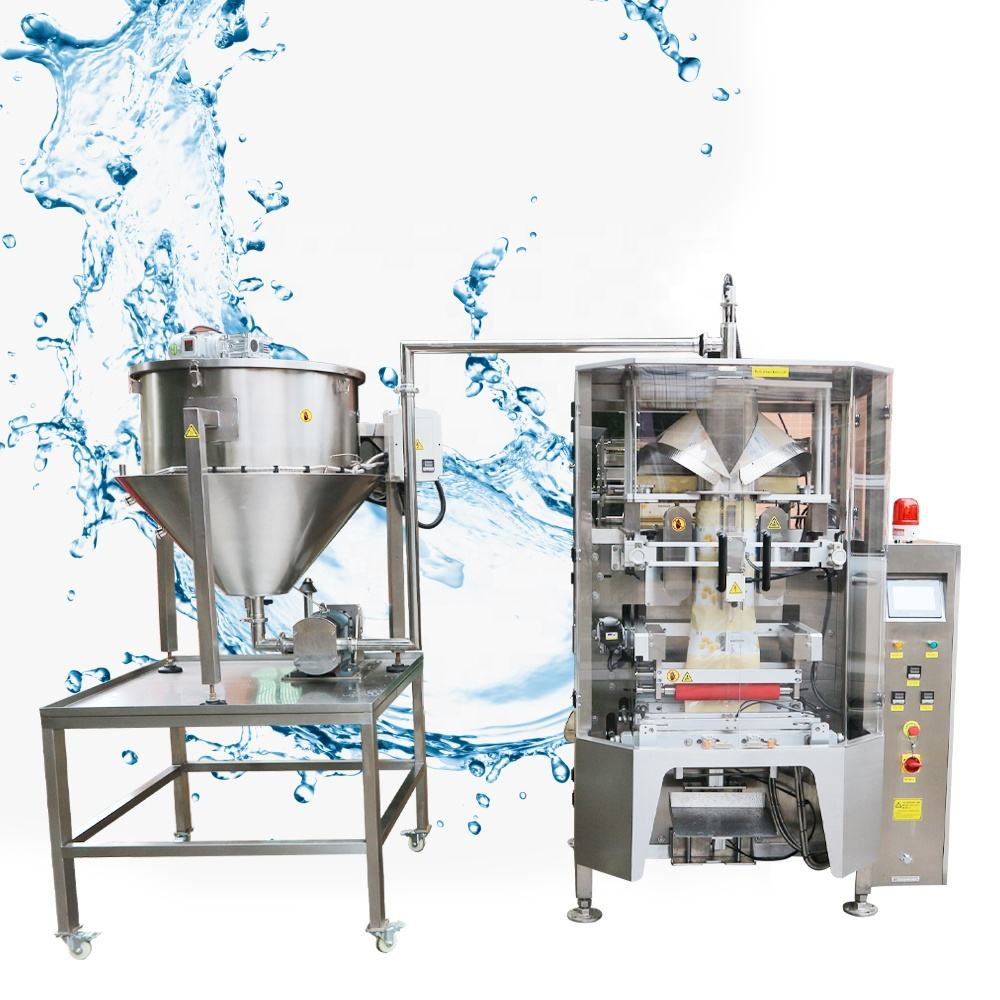

VFFS Full Packaging Automatic Vertical Bagging Liquid Airless Multi Function Packaging Machines
- group name
- Liquid vertical packing machine
- Min Order
- 1 set
- brand name
- TOP Y Machinery
- model
- VFFS
- Nearest port for product export
- Shenzhen, Guangzhou, Beijiao, Shanghai
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, MoneyGram
- update time
- Sat, 03 Jan 2026 06:35:03 GMT
Paramtents
Name VFFS Packing Machine
function FILLING, Sealing, Packing
core components Motor, PLC, Gear, Bearing, Temperature Control Mod
After-sales Service Provided Engineers available to service machinery overseas
Machine Material SS#304 or Carbon/Mild Steel
Film Changeover Simple and fast bag sizes with one set of former
Software Operation Program storage and retrieval function
Bags or Products Changeover parameters setting on the touch screen
Controller System PLC and touch screen with simple manu-based
Machine Material SS#304 or Carbon/Mild Steel
brand name TOP Y MACHINERY
Packging & Delivery
- 80cm x80cm x150cm
-
Min Order1 set
Briefing
Vffs machine is suitable for all kinds of the bags made of plastic roll film.
Detailed
VFFS Full Packaging Automatic Vertical Bagging Liquid Airless Multi Function Packaging Machines
Function and characteristics:
1. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm
2.The width of the bags could be adjusted by electrical motor.
3. It matches with the glass safety door. The machine will stop working when you open the door. So that it could protect the safety of operators. At the same time, it could prevent dust.
4.The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
Product Description
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use.
To be used on Top Y High quality machine, it makes your packing work easily and efficiently.
Specification Of VFFS Packing Machine | |||||||
Model | TOPY-VP320 | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP730 | TOPY-VP820 | TOPY-VP1050 |
Bag Size | (L)30-220mm
(W)50-150mm | (L)70-300mm
(W)60-200mm | (L)80-350mm
(W)100-250mm | (L)80-350mm
(W)100-250mm | (L)200-400mm
(W)140-350mm | (L)150-500mm
(W)250-400mm | (L)200-500mm
(W)140-500mm |
Bag Speed (standard machine) | 10- 60bags/min | 10- 70bags/min | 15- 60bags/min | 15- 60bags/min | 10- 50bags/min | 5-30bags/min | 2-30bags/min |
Bag Speed (High-speed machine) | Max 100 bags/min | Max 100 bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min | Max 100
bags/min |
Film Width | 120-320mm | 120-420mm | 220-520mm | 220-620mm | 300-720mm | 340-820mm | 300-1050mm |
Film Thickness | 0.03-0.1mm | 0.03-0.1mm | 0.04-0.10mm | 0.04-0.1mm | 0.05-0.12mm | 0.06-0.15mm | 0.07-0.20mm |
Air Consumption | 0.7Mps
0.5m3/min | 0.7Mps 0.5m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.4m3/min | 0.8Mps 0.5m3/min | 0.6Mps 0.7m3/min | 0.8Mps 0.7m3/min |
Dimension | 1300*880*1150 | 1530*970*1600 | 1430*1200*1700 | 1430*1200*1700 | 1340*1580*1950 | 1500*1680*2100 | 1740*2080*2500 |
Weight | 250kg | 450kg | 680kg | 700kg | 800kg | 1000kg | 1200kg |
Power Supply | 2.2kw, 220V
50/60HZ | 2.2kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 2.5kw, 220V 50/60HZ | 3.0kw, 220V 50/60HZ | 3.0kw, 220V 50/60HZ |
The Optional Device On The VFFS Packing Machine
Please Inform The Bag Type You Need
VFFS Packing Machine For Different Kinds Of Product
VFFS packing machine,the machine for your current and future needs! The functions of the packing system mainly are conveying, weighing, bag forming, filling and bag sealing. The flexibility of it allows you to customize your machine to meet your individual requirements!
VFFS packing machine is suitable for all kinds of the bags made of plastic roll film, such as pillow bag, side gusset bag, quad sealing bag and so on.
Besides, by connecting with different weighing equipment, the packing system can handle various products, such as powder, snacks, dried vegetable or fruit, puffed food, liquid sauce, beverage, etc.
